DESCRIPTION

Basic Info.

Model NO.	ZH-V520
Forming Function	Filling, Seal
Driven Type	Electric
Material Type	Solid
Packaging	Bag
Packaging Material	Film
Machine Weight	650kg
Max Film Width	520mm
Bag Size	W:90-250mm L:80-350mm
Thickness of Film (mm)	0.04-0.09mm
Power Parameter	220V50/60Hz 2.2kw
Bag Making Mode	Pillow Bag, Standing Bag (Gusseted), Punching Bag
Transport Package	Wooden Case
Specification	1.53m*970m*1.7m
Origin	Zhejiang, China
HS Code	8422303090
Production Capacity	99 Per Month

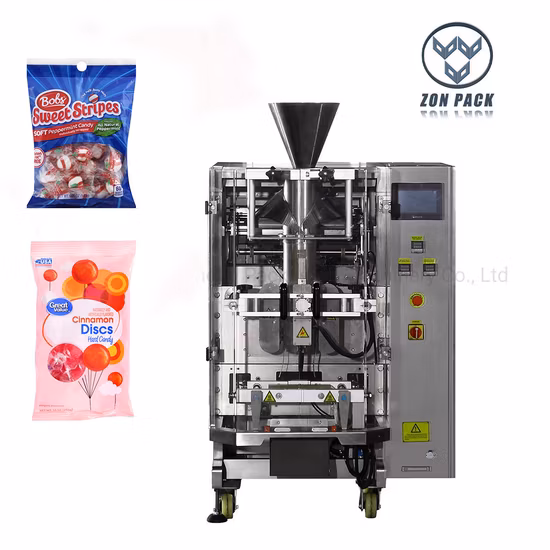

Product Description

It is suitable for packing grain, stick, slice, globose, irregular shape products such as puffy food, snacks, candy, chocolate, nuts, pistachio, pasta, coffee bean, sugar, chips, cereals, pet food, fruits, roasted seeds, frozen food, small hardware, etc.

Technical Feature1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.3. Double-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.4. Perfect alarm system to make problem solved quickly.5. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.6. Machine can make pillow bag and standing bag (gusseted bag) according to customer's requirements. Machine also can make bag with punching hole & linked bag from 5-12bags and so on.7. Working with weighing or filling machines such as multihead weigher, volumetric cup filler, auger filler or feeding conveyor, process of weighing, bag making, filling, date printing, charging (exhausting), sealing, counting and delivering finished product can be completed automatically.

Technical Specification
Model	ZH-V520
Packing Speed	25-60 Bags/Min
Bag size(mm)	(W) 90-250 (L)80-350

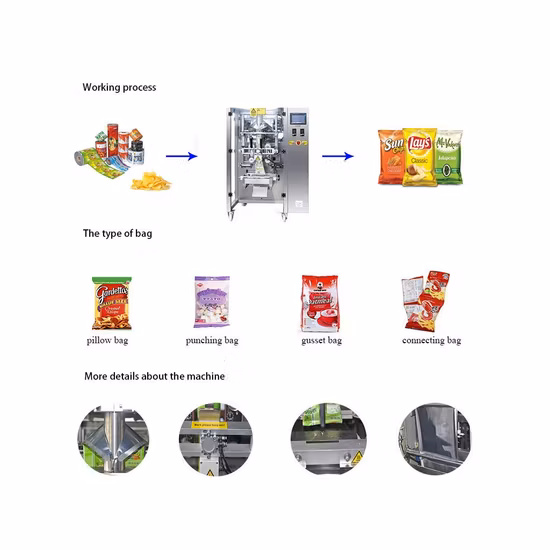

Bag making mode	Pillow bag, Gusset bag , Punching bag, Connecting bag
Packing Material	laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET.
Thickness of film (mm)	0.04-0.10
Power Parameter	220V 50/60Hz 2.2KW
