Products

DESCRIPTION

Basic Info.

Model NO.	6YL-100
Warranty	12 Months
Processing Method	Compression
Raw Material	Sesame Peanut Sunflower Seed, Soyean
Transport Package	Wood Box
Specification	2000*1300*1850
Trademark	Sinoder
Origin	Henan
HS Code	1501000000
Production Capacity	1000pieces/Year

Product Description

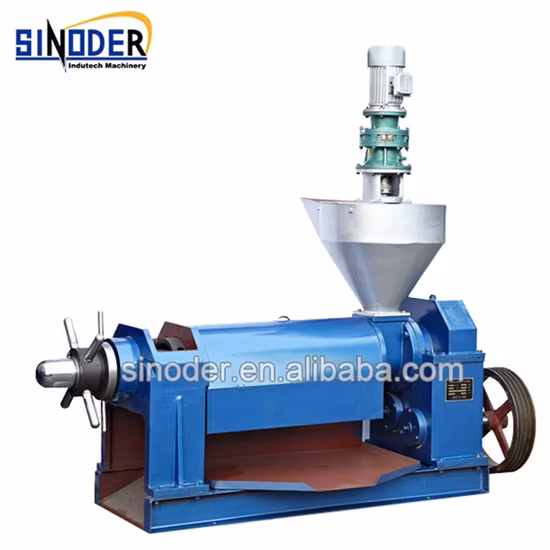

Corn Oil Press Machine Cotton Seed Oil Mill

Small-sized oil press machine

Small scale vegetable seeds frying and oil extraction and oil filter production line system including the vegetable seeds infeed hopper, frying machine with furnace, primary seeds oil press machine, secondary oil cakes extraction machine and finished oil filter machine.The Small scale vegetable seeds frying and oil extraction and oil filter production line is quite compact and easy to operate, suitable for home use and small scale oil plant.It is a automatic operation system.

Parameters of Small-sized oil press machine

Model		6YL-60	6YL-80	6YL-100	6YL-120	6YL-160
Dia.		Φ53mm	Φ81mm	φ101mm	φ123mm	φ160mm
Screw speed		64 r/min	47r/min	38r/min	35r/min	32r/min
Power	Motor	1.5-2.2kw	5.5kw	7.5kw	11kw	22kw
	Vacuum pump	0.18kw(VP-1.5)	0.55kw	0.75kw	1.1kw	1.1kw
	Heater	0.9kw	2.2kw	2.2kw	2.2kw	2.2kw
Capacity		4.-60kg/h	80-100kg/h	150-200kg/h	250-300kg/h	500-600kg/h
Weight		268kg	880kg	1250kg	1500kg	1800kg
Size(mm)		1020*720*798	1500*1200*1750	2000*1300*1850	2100*1300*1850	2300*1300*1950

Large-sized oil press machine

The large-sized oil press machine obtained ISO9001-2000 authentication. It's suitable for pressing cottonseed, rapeseed, tung seed, sunflower seed, groundnut seed and other high oil contained plants. Its characteristics are high capacity, low power consumption, low cost in running, the construction of the press cake is soft but not fragmentary, and the solvent is apt to infiltrate, lower oil in cake. It's the excellent choose of press equipment for the large and medium-sized oil factory.

Parameters of Large-sized oil press machine

Model	Capacity	Oil in cake	Power	Overall dimensions(L×W×H)	N.W.
ZY24A	60-80 t/d	12-18 %	30+5.5+3.0 kw	2900×1850×3640 mm	5500 kg
ZX24A	15-20 t/d	7-9 %	30+5.5+3.0 kw	2900×1850×3640 mm	5500 kg
ZY28	120-150 t/d	16-20 %	75+11+4.0 kw	3740×1920×3843 mm	9160 kg
ZX28	40-60 t/d	7-9 %	55+11+4.0 kw	3740×1920×3843 mm	9160 kg
ZY32	220-260 t/d	16-20 %	110+11+5.5 kw	4100×2270×3850 mm	11000 kg
ZX32	90-100 t/d	8-10 %	90+11+5.5 kw	4100×2270×3850 mm	11000 kg

Oil Refining Machine

Sinoder is offering a complete choice of products which include Palm Oil Refining Plant, Palm Oil Refining System and Palm Oil Refining Equipments to the customers. We assist in complete Palm Oil Refining Solutions from start to end. We have the expertise to provide the cost effective palm oil refineries for the crude oil.The red palm oil is the oil obtained from the palm fruits of the oil palm. The beta-carotene and carotene content present in the fruit is responsible for the reddish color of the oil.

Company information

Sinoder is approved by the State Science and Technology Development Board, Now has become China's small and medium-sized spiral oil press and screw pressbefore and after the processing equipment set research and production as one of the key enterprises. Strong technical force, science and technology staff account for more than 15% of the number of employees, research institutes to establish a wide rangeof technical cooperation anddevelopment so that enterprises R & D capabilities even more powerful. The main production of a variety of spiral oil press, a variety of roller fried seed pot, a variety of grease filtration equipment, a variety of screw conveyorequipment. Quality of products access to international IS9001 quality management system certification.
Our factory
The factory is the national professional manufacturer in oil industry equipment, obtained outstanding member of Chinese Cereals and Oils Association and of Chemical Association, approved by the State Quality and Technical Supervision of "Pressure Vessel Manufacturing License" "Pressure Vessel Design License" "Pressure Piping Installation License" "Pressure Piping Design License", with many years of grain and oil machinery, chemical equipment and the reduction of mechanical design, manufacture, installation history.The company is the country's oil industry equipment professional manufacturer of Chinese Cereals and Oils Association member units and Chemical Association unit, the State Quality and Technical Supervision pressure vessel manufacturing license units, with many years of grain and oil machinery, chemical equipment and the reduction of mechanical design, manufacture, installation history.Our factory have Strong technical capacity, complete testing means, fully implement the ISO9001 quality management system requirements, in strict accordance with the Department of superscript, subscript implementation.Our factory have all kinds of oil machinery and chemical industry equipment, reduction of mechanical design and manufacturing, welding, metal cutting and other advanced equipment.

Packing & Shipping

• Wooden packing conform to the international export standard

• Carton + foam.

• As clients' requirements.

FAQ
1
Q:Which kind of oil materials can be processed?
A: All kinds of oil seeds. For example of common oil material:soybean, rice bran, corn germ, cottonseeds, peanut, sunflower, rapeseed, palm fruit etc.

2. Q:What's the input capacity of your machinery?
A: 5-2000 tons per day. the input capacity is according your plan or requirements to customized.

3. Q:The materials of your machinery?
A: The stainless steel and carbon steel.

4
Q:How should I do if meet some trouble while using?
A:we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.

5. Q:Can you install the machine in local place?
A: We will send our engineers to local place to help installing the machine and provide technical guidance.

6
Q:How long can we receive the goods?
A:delivery about 45 working day after your order,have different shipping time of different machinery,and we will inform you shipping time based on your seaport.
How to contact us?
Zhengzhou Sinoder Indutech Machinery Co.,LtdMiss Judy Wang
